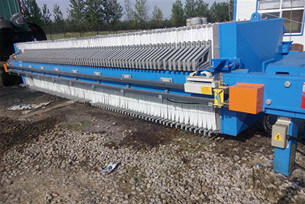

Filter Press
LZZG filter press is a piece of sludge dewatering equipment that separates liquids and solids using pressure filtration in the sludge management. When working, slurry will be pumped into press chambers and dewatered with pressure. Each unit need to be designed based on the types of slurry as well as the volumes.
Send E-mail: export@lylzzg.com
Filter press is supplied for a wide application in municipal & industrial industries. After processed by the filter press, the mud will be mud cake and the humidity is around 20%.
Working principle
The mixture flows through the filter medium (filter cloth), the solid stays on the filter cloth, and gradually piles up on the filter cloth to form the filter cake. The filtrate part penetrate the cloth, become clear water.
Technology Advantages
1. Less associated devices
Elaspress filter presses only use a hydraulic oil cylinder to provide enough pressure when other types of filter presses have to be equipped with water tanks, air compressors, water pumps, compression pumps, air storage tanks and other necessary devices.
2. Filter plates made of steel, instead of fragile PP
For the filter plates of elaspress filter presses are made of steel and hard to be damaged, they can be used for 5~8 years without any replacement.
Specifications
| Model | Capacity (t/h) | Filter Area (m²) | Filter Plate (mm) | Plate Number (block) | Filter Pressure (mpa) | Main Motor Power (kw) | Weight (kg) | Overall Size (mm) |
| G60-100 | 1-1.5 | 60 | 1000X1000X65 | 37 | 0.6-0.8 | 3 | 4800 | 5120X1450X1360 |
| G100-100 | 2-3 | 100 | 1000X1000X65 | 61 | 0.6-0.8 | 3 | 6630 | 6730X1450X1360 |
| G150-125 | 3-5 | 150 | 1250X1250X65 | 57 | 0.6-0.8 | 4 | 7950 | 7560X1840X1620 |
| G200-125 | 4-6 | 200 | 1250X1250X70 | 76 | 0.6-0.8 | 4 | 10800 | 9240X2050X1680 |
| G250-125 | 5-7 | 250 | 1250X1250X70 | 94 | 0.6-0.8 | 6.25 | 12060 | 10580X2050X1680 |
| G350-150 | 6-8 | 350 | 1500X1500X75 | 89 | 0.6-0.8 | 5.5 | 20880 | 10920X2500X1920 |
| G400-150 | 9-11 | 400 | 1500X1500X75 | 102 | 0.6-0.8 | 5.5 | 23480 | 11930X2500X1920 |
| G500-150 | 11-15 | 500 | 1500X1500X75 | 127 | 0.6-0.8 | 12.1 | 24880 | 13830X2500X1920 |
| G800-200 | 20-25 | 800 | 2000X2000X83 | 113 | 0.6-0.8 | 12.5 | 48000 | 15100X3700X2400 |
