Y Series Vibrating Screen

vibratory-screen-2

This Y series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size.

mailSend E-mail: export@lylzzg.com

This Y series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size. For the compact structure and the convenient installation, it is the ideal screening device for prefilter of the feed materials before the primary crushing in the quarry site, it also can be used as separation and filtration solely. The vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and more sieving specifications. The circular vibrating screen can also be used for production classifying in quarry, mine, construction, electricity, chemical industry,etc.

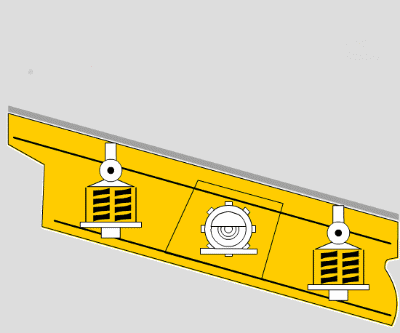

Working principle

hhy

1. The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force.
2. The materials make circular movement on the screen to realize sieving.

Features

1. Vibrating screen YA is of several decks whose moving track is round.
2. The moving track of material is very long; the size of material can be separated into several specifications.
3. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. It has the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc.
4. It is widely used in separating gravel and is also suitable for mining, construction material, transportation, energy, chemical industry and so on.

Specifications

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
2YK1548 0-200 0-160 1500*4800 7.2 11 5000*2900*2900
2YK1860 0-200 0-200 1800*6000 10.8 15 6200*3400*3500
3YK1860 0-300 0-200 1800*6000 10.8 22 6200*3400*4100
2YK2160 0-200 0-250 2100*6000 12.6 22 6200*3700*3500
3YK2160 0-300 0-250 2100*6000 12.6 22 6200*3700*4100
2YK2460 0-200 0-300 2400*6000 14.4 22*2 6200*4100*3800
3YK2460 0-300 0-300 2400*6000 14.4 30*2 6200*4100*4400
2YK2472 0-200 0-300 2400*7200 16.8 22*2 7400*4000*4000
3YK2472 0-300 0-300 2400*7200 16.8 30*2 7400*4100*4600
2YK3072 0-200 0-300 3000*7200 21.6 30*2 7400*4700*4100
3YK3072 0-300 0-300 3000*7200 21.6 30*2 7400*4700*4700
3YK3672 0-300 0-350 3600*7200 25.92 37*2 7400*5400*4700
