LX Screw Sand Washing Machine

screw-washer-1

Base on years’ experience and technology, LXS screw sand washing machine is designed to provide bigger capacity and higher cleaning level than traditional sand screw. It is also called “stone washing machine” as its input material size is at most 30mm.

mailSend E-mail: export@lylzzg.com

Base on years’ experience and technology, LX spiral sand washing machine is designed to provide bigger capacity and higher cleaning level than traditional one. It is also called “stone washing machine” as its input material size is at most 30mm. Now it is widely used for cleaning materials in quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.

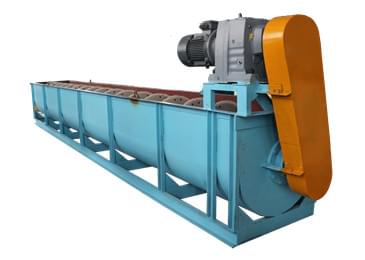

screw-washer-2

Working principle

It is composed of the electric motor, big and small belt pulleys, triangle belt and gear reducer. The sand washer adopts inclination of 15 degree. Under the water tub, three weir plates form the sediment pool. The spiral head is immersed in this pool, and the spiral is driven by electric motor through reducer rotating continuously. The fresh water is feeded from porous plate at bottom of sediment pool, and the washed sand is discharged on the top side and delivered by belt conveyor.

Features

1. Three functions: cleaning, dewatering and grading.
2. Cleaning and upward conveying at the same time.
3. Low water consumption.
4. Impellers use wear resisting plate or polyurethane material so as to reduce the running cost.
5. Designed according to low volume and low investment.

Specifications

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Spiral Shaft Tank Length (mm) Power (kw) Overall Size (mm)
LX0760 ≤10 20-40 760 1 6000 7.5 5700*1420*1900
LX0920 ≤10 30-60 920 1 8000 11 8710*1630*2080
LX1120 ≤10 40-80 1120 1 8000 18.5 9230*1840*2130
LX1500 ≤10 50-100 1500 1 8000 22 9620*2230*2480
2LX0920 ≤10 60-120 920*2 2 8000 11*2 8710*2600*2080
2LX1120 ≤10 80-160 1120*2 2 8000 18.5*2 9230*3050*2130
2LX1500 ≤10 120-250 1500*2 2 8000 22*2 9620*3730*2480
