Trommel Screen

trommel screen

The trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials by particle size , mainly used in the mineral and solid-waste sorting industries.

mailSend E-mail: export@lylzzg.com

The trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries.
LZZG trommel screens are designed to minimize setup time and be easy and convenient to service. We have perfected the ability to size and customize trommel screens with different materials to suit the application, such as the updated product compact sand washer.

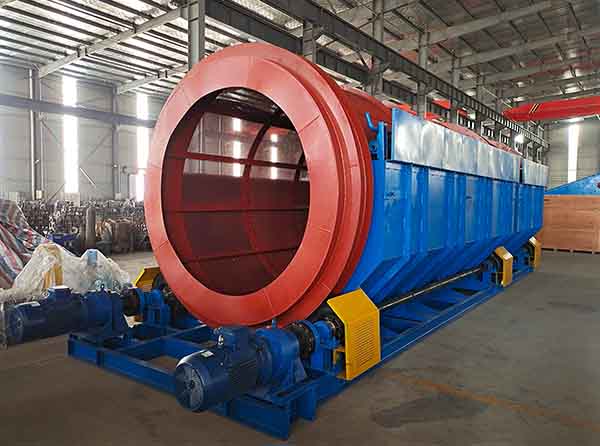

trommel screen machine

Working principle

The trommel drum cylinder is tilted on the rack. The motor is driven by the reducer to rotate the drum unit around its axis. After the material enters the drum device, due to the tilting and rotation of the drum device, the material on the screen surface is flipped and rolled so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the trommel screen, and the unqualified material(the product on the screen) is discharged through the discharge port at the tail of the trommel screen.

Technology Advantages

1. The screen hole is not easy to block.
2. Running smoothly and the noise is low.
3. The structure is simple and the maintenance is convenient.
4. The trommel drum cylinder can be closed, and easy to collect dust.
5. Various plate and mesh sizes
6. Screen drums made to customer specification.

trommel screen machine

Specifications

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Cylinder Inclination (°) Power (kw) Overall Size (mm)
YGT1040 ≤50 30-60 1000X4000 6 3kw 5500X1460X2340
YGT1240 ≤50 30-100 1200X4000 6 5.5kw 5500X1680X2480
YGT1560 ≤50 30-150 1500X6000 6 11kw 6800X2100X4400
YGT1860 ≤50 30-200 1800X6000 6 15kw 8490X2400X4680
YGT2160 ≤50 30-200 2100X6000 6 18.5kw 8490X2760X5000
YGT2460 ≤100 30-250 2400X6000 6 18.5kw 8490X3020X5200
WGT1560 ≤100 30-150 1500X6000 5-10 7.5kw 6800X2100X4400
WGT1860 ≤100 30-200 1800X6000 5-10 11kw 8490X2400X4680
WGT2160 ≤100 30-250 2100X6000 5-10 15kw 8490X2760X5000
WGT2480 ≤100 30-300 2400X8000 5-10 22kw 8700X2860X5700
WGT3080 ≤100 30-400 3000X8000 5-10 37kw 8800X3660X5800
