Spiral Sand Washing Plant

screw-wash-plant-2

The spiral sand washer is a high efficient and multi-functional water washing equipment, which is composed of a spiral sand washing machine and a dewatering screen and hydrocyclones.

mailSend E-mail: export@lylzzg.com

The spiral sand washer is a high efficient and multi-functional water washing equipment, which is composed of a spiral sand washing machine and a dewatering screen and hydrocyclones. Compared to the purchase price of equipment alone, the choice of spiral sand washing machine is undoubtedly more cost-effective.
The spiral sand washing machine consists of spiral sand washing device, overflow device, water reverse device, separation and recovery device, water storage tank, slurry pump, elrctro motor, reducer and so on.

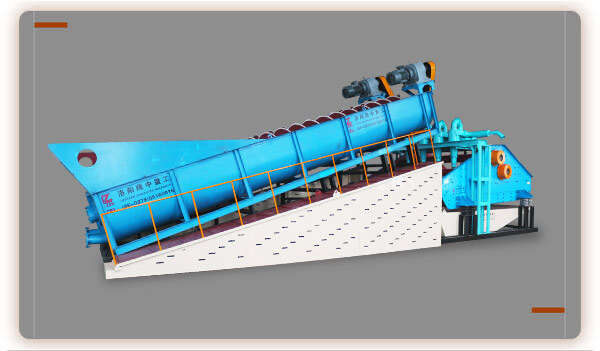

screw-wash-plant

Working principle

When the spiral sand washing machine is working, the crushing and grading materials are first passed through the conveyor belt to the double spiral sand washing device. After the grading and cleaning, the qualified material is dehydrated into the dewatering device, and the remaining waste water that after cleaning by the spiral sand washing device (containing a part of qualified material) is passed through the overflow device and get into the water reservoir device, then the waste water is pumped into the separation recovery device by slurry pump, material is concentrated under the action of centrifugal force, and the concentrated material get into the dehydrating device for dewatering.

Technology Advantages

1. Compact structure, space saving.
2. The production range is large and can be customized.
3. High efficiency, more economical and practical.

Specifications

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Hydrocyclone (mm) Screen Panel(mm) Power (kw) Overall Size (mm)
LY40 ≤10 20-40 760 250X2 1200X2400 33.9 10880X5240X3720
LY60 ≤10 30-60 920 300X2 1500X3000 47 11490X5560X3960
LY80 ≤10 40-80 1120 300X2 1800X4200 59.5 12830X5860X4250
2LY100 ≤10 80-120 920X2 350X2 2400X4200 74 12630X6450X3860
2LY150 ≤10 100-150 1120X2 300X4 2400X4200 119 12630X6450X4150
2LY200 ≤10 100-160 1500X2 350X4 3000X4800 148 13560X7860X4300
2LY250 ≤10 160-250 1500X2 300X6 3600X6000 178 14760X7920X4900
