Mobile Slurry Treatment Station

portable-slurry-purification-1

LZYN-1020 mobile slurry treatment station is designed for the Building piling slurry, dredging of rivers and lakes, urban sewer dredging and the other industries, which was designed and applied to multi-site operations according to actual requirements.

mailSend E-mail: export@lylzzg.com

Brief introduction

LZYN-1020 mobile slurry treatment station is designed for the Building piling slurry, dredging of rivers and lakes, urban sewer dredging and the other industries, which was designed and applied to multi-site operations according to actual requirements. This mobile slurry treatment station has the characteristics of high production efficiency, excellent working effect, convenient and flexible operation and can meet the requirements of various working environment.

Working principle

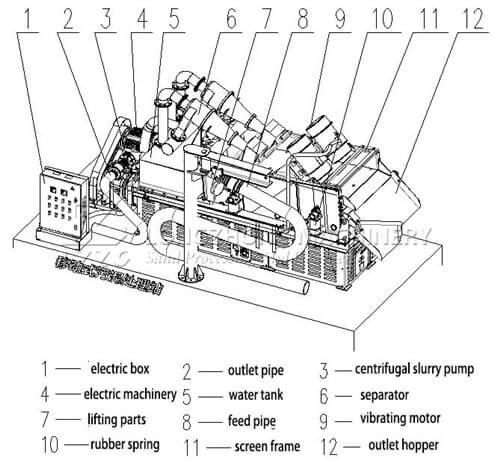

uoo

Mud to be processed will come into the lower layer of sieve machine through feeding pipe, The lower sieve plate (hole seam is 5mm) sieves the large particles whose size is more than 5mm, small particles of material will come into the tank under the sieve with water, and then through the slurry pump, they are fed into the high pressure separator that can concentrate and separate the solid particles. The slurry reached about 50% flows out from the bottom of separator and get to the upper screen , the sieve plate (hole seam is 0.16mm) can complete dehydration operation and realize the mud drying. The waste water less than 3% of the suspended matter flows into the water tank from the overflow of the separator, and then is discharged through the discharge pipe.

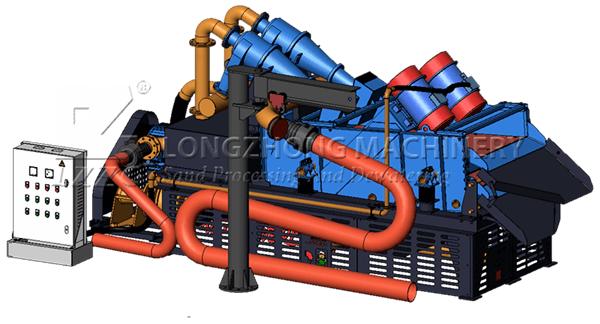

uuyi

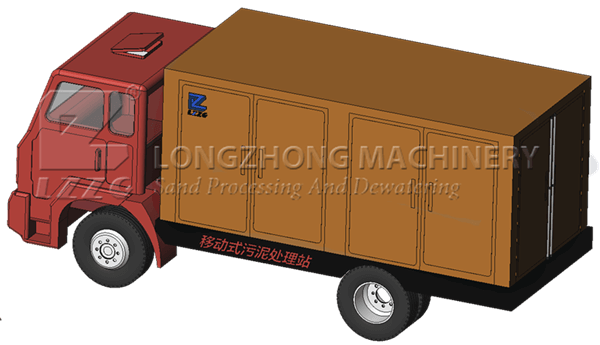

k

Specifications

Model Feed Size (mm) Capacity (t/h) Screen Panel (mm) Screen Layer Hydrocyclone (mm) Power (kw) Weight (kg) Overall Size (mm)
JH-FX40 ≤10 10-20 900*1800 2 250 15.4 2500 4900*2500*3100
JH-FX60 ≤10 20-50 1200*2400 2 300 21 4050 5400*2800*3200
JH-FX80 ≤10 40-80 1500*3000 2 350 29.5 4900 5800*3400*3600
JH-FX200 ≤10 60-100 1800*4200 2 300*2 45 7200 7200*3800*4200
JH-FX300 ≤10 80-150 2400*4200 2 350*2 59 9600 7200*4400*4600
