LSF Hydraulic Classifier

LSF-hydraulic-classifier111

LSF hydraulic classifier is part of the family of hindered settling classification equipments. It adopts the mechanism of “layer flow high shear rate”, which solves the problem that traditional technology cannot adapt to the change of feed particle size, resulting in the loss of fine material recovery.

mailSend E-mail: export@lylzzg.com

LSF hydraulic classifier is part of the family of hindered settling classification equipments. It adopts the mechanism of “layer flow high shear rate”, which solves the problem that traditional technology cannot adapt to the change of feed particle size, resulting in the loss of fine material recovery. LSF hydraulic classifier has significant advantages in terms of capacity, adaptability and efficiency, and has higher recovery and classification efficiency.

LSF hydraulic classifier can be applied to aggregate processing, coal mud separation, quartz sand production, ceramic raw material processing, silica sand processing, and various metal mine tailings sorting and processing.

Working principle of LSF hydraulic classifier

LSF hydraulic classifier separates small particles based on differences in density or particle size. It combines a traditional fluidized bed separator with a set of parallel inclined plates that form a thin-film channel. Fine particle materials enter the interior of the thin-film chamber through the feed inlet, thus entering the mixing chamber located below the thin-film, where the material is fluidized to form a slurry under the action of the fluidized bed. Materials with high density will sink due to gravity, while materials with low density will float up.

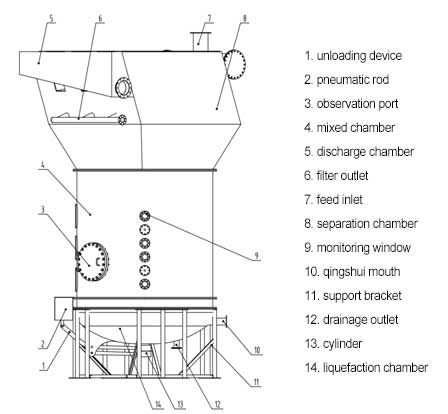

LSF-hydraulic-classifier1

At the bottom of the mixing chamber, a higher density sediment solid bed is formed. The high density bed layer is kept in a suspended state by the fluidized water jet entering at the bottom of the chamber. Due to the turbulent motion generated by the fluidized water injected from below, coarse and fine low-density particles trapped in the dense fluidized bed are sorted and rise upward into the thin-film chamber above. High-density particles sink to the bottom of the fluidized bed under gravity and migrate to the gas cylinder at the bottom of the liquefaction chamber.

The LSF can be remotely monitored and controlled by intelligent monitoring. When it reaches the set value, the control unloading device can be opened/closed by the control cylinder for unloading.

Spiral chutes features:

1. Customize according to specific on-site requirements;
2. Easy to transport and install;
3. Easy to adjust, flexible process, and higher efficiency;
4. Compact structure, easy to operate, suitable for any production line layout;
5. It can be remotely monitored and has a high degree of automation;
6. Reduce maintenance costs.

Specifications

Model Feeding Size (mm) Capacity (t/h) Overall Size (mm)
LSF 1100 0.04~2 40 4134*1987*6126
LSF 2000 0.04~2 100 4847*2845*6234
LSF 3000 0.04~2 200 6456*3665*6915
LSF 3600 0.04~2 300 7280*4484*7525
