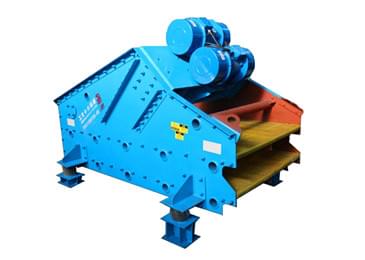

Double Deck Dewatering Screen

double-deck-dewatering-screen

Double Deck Dewatering Screen for tail slurry materials, is my company’s new screening equipment, with low energy consumption, the characteristics of large capacity, belong to the domestic same industry leading products.

mailSend E-mail: export@lylzzg.com

Double Deck Dewatering Screen for tail slurry materials, is my company’s new screening equipment, with low energy consumption, the characteristics of large capacity, belong to the domestic same industry leading products.
This series Widely used in Tailings processing, coal slime dewatering, washed quartz sand and mud dehydration processing link, etc.Suitable for dewatering, medium drainage , spraying, dry and wet classifying for medium and fine material.

uuu

kuyi

Working principle

Double Deck Dewatering Screen adopts dual-motor self-synchronization technology.The motors coordinate with universal eccentric and adjustable amplitude vibrator.When the two motors start to work, the vibrators move reversely at the same time.The centrifugal force is generated by the eccentric blocks superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand will be dehydrated and filtered.

Feature

1.Choose polyurethane screenas its vibrating screen.
2.Customized sizes.
According to different situation, not only polyurathane screen mesh can be adjustable,
but also its length, width and screen layers can be manufactured for different needs.
3.Simple structure, easliy installation and lower invest.
4.Bending a whole steel plate as its main body, no welding and no leaking.
5.Final sand water content down to 15%, convenient in packing and delivery.

Specifications

Model Screen area (m²) Power (kw) Capacity (m³/h) Feed size (mm) Weight (t) Overall dimension (L*W*H)(mm)
TS1020 2 1.5*2 20-30 ≤10 1.6 2220*1340*1190
