Banana Screen

banana screen

JR -type banana sieve is suitable for coal or similar minerals with dry and wet sieving and medium and mud removing of coal.

mailSend E-mail: export@lylzzg.com

The JR-type banana screen is suitable for screening operations such as grading dehydration and deintermediation in the coal industry, dry and wet classification in the mining industry, and sintering and sintering pellets in the metallurgical industry. The Banana screen has the characteristics of large processing capacity, high screening efficiency, low failure rate, and lowest use cost.

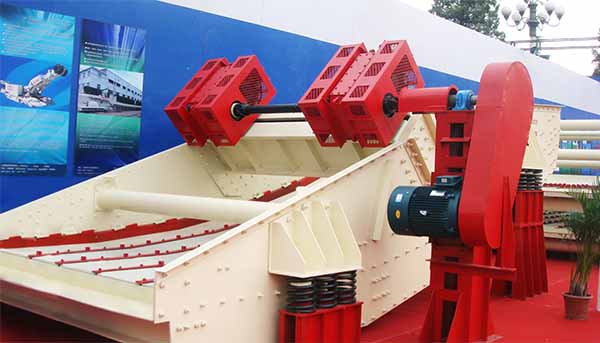

banana screens

Working principle

The screen surface of the JR-type banana screen is composed of nearly arc surfaces composed of multiple sections of different inclination angles. During the material screening process, the material on the screen surface continuously falls through the screen holes and gradually decreases. At the same time, the running speed of the material gradually slows down due to the gradual decrease of the inclination angle of the screen surface, so that the thickness of the material on the screen surface from feeding to discharging is approximately equal. For equal-thickness screening, the material is sufficiently screened, taking into account the screening efficiency and processing capacity. Banana sieves have high screening efficiency and large processing capacity, ensuring that difficult screening problems are dealt with in the lightest and most economical way.

Structure and features

1. The principle of equal-thickness screening is applied, and different vibration parameters, the number of segments, and the inclination angle of the screen surface are adopted for different material characteristics. The inclination angle of the screen surface is too gentle, and the number of screen surface segments is 4~7, which can ensure the best screening process effect. At the same time, the gentle excessive inclination angle and a large number of segments are beneficial to the improvement of the life of the screen surface.

2. Vibrator: Adopt the world’s advanced JR type box vibrator (see the introduction of JR vibrator for details), splash lubrication, and built-in lubricating oil channel to ensure full lubrication of the bearing. The gear is a high-precision helical gear, and the bearing is dedicated to vibration equipment. The bearing and oil drain plug are magnetic, and the external organic plastic transparent oil mark can easily observe the oil level. Special measures are adopted to ensure that the bearings and gears work smoothly. The noise of the vibrator is lower than 75 decibels, and the bearing temperature is lower than 50 degrees.

3. The beam of the exciter adopts a three-I-shaped beam structure, which overcomes the problem of poor stress of the middle square beam. It is equipped with a reinforcing rib plate, which has high rigidity and lightweight, and it is treated with stress relief after welding.

4. The lower beam supporting the screen surface adopts a special I-shaped beam, and the connection between the beam and the screen surface is a high-strength bolt connection, which avoids the problem of local stress concentration and low beam life caused by welding. At the same time, users can easily maintain the screen surface system.

5. The cutting and drilling of the side plate are completed by a high-precision CNC lathe to ensure accuracy. There is no welding seam on the side plate to avoid stress concentration on the side plate, thereby preventing the side plate from cracking.

6. There are two ways to fix the screen surface, one is the middle rail seat type with polyurethane pressed wood at both ends, and the other is the middle-pressure plate type with polyurethane pressed wood at both ends, which can be installed with polyurethane screen surface or stainless steel screen surface. Users can choose according to their needs, which is very flexible.

7. The screen has a feeding box with sufficient strength, rigidity, and length, it can prevent the impact of large pieces of material or the improper design of the feeding chute causing large pieces of material to fall directly into the screen surface, resulting in premature damage to the screen surface.

8. The key components are connected by torsion shear-type high-strength bolts, which are reliable in connection and easy to maintain.

9. The main components are made of Q245R, which is a special steel for pressure vessels, with good impact toughness, cold bendability, and weldability.

10. Each screen is tested with no load for 8 hours before leaving the factory to ensure that every screen can operate safely and reliably

11. Modular component design, high degree of generalization, easy for users to install and maintain; the screen surface can be mesh or plate screen surface, stainless steel or polyurethane screen surface according to the needs of different users;

12. The steel spiral spring is adopted to reduce vibration and minimize the dynamic load of the foundation.

Specifications

 Model Screen layer Screen size

(w*l)(m)

Screen Area

(㎡)

Segment Qty Model Screen layer Screen size

(w*l)(m)

Screen Area

(㎡)

Segment Qty
JR1848 1 1.8×4.8 8.6 4
JR1861 1 1.8×6.1 10.8 5 2JR1861 2 1.8×6.1 10.8 5
JR2448 1 2.4×4.8 11.5 4
JR2461 1 2.4×6.1 14.4 5 2JR2461 2 2.4×6.1 14.4 5
JR2473 1 2.4×7..3 17.2 6 2JR2473 2 2.4×7.3 17.2 6
JR2485 1 2.4×8.5 20.1 7
JR3061 1 3.0×6.1 18 5 2JR3061 2 3.0×6.1 18 5
JR3073 1 3.0×7.3 21.6 6 2JR3073 2 3.0×7.3 21.6 6
JR3085 1 3.0×8.5 25.2 7
JR3661 1 3.6×6.1 21.6 5 2JR3661 2 3.6×6.1 21.6 5
JR3673 1 3.6×7.3 25.9 6 2JR3673 2 3.6×7.3 26 5
JR3685 1 3.6×8.5 30.2 7
JR4261 1 4.2×6.1 25.2 5
JR4273 1 4.2×7.3 30.6 6
